Chiron MILL 800 5 axis milling turning - ms

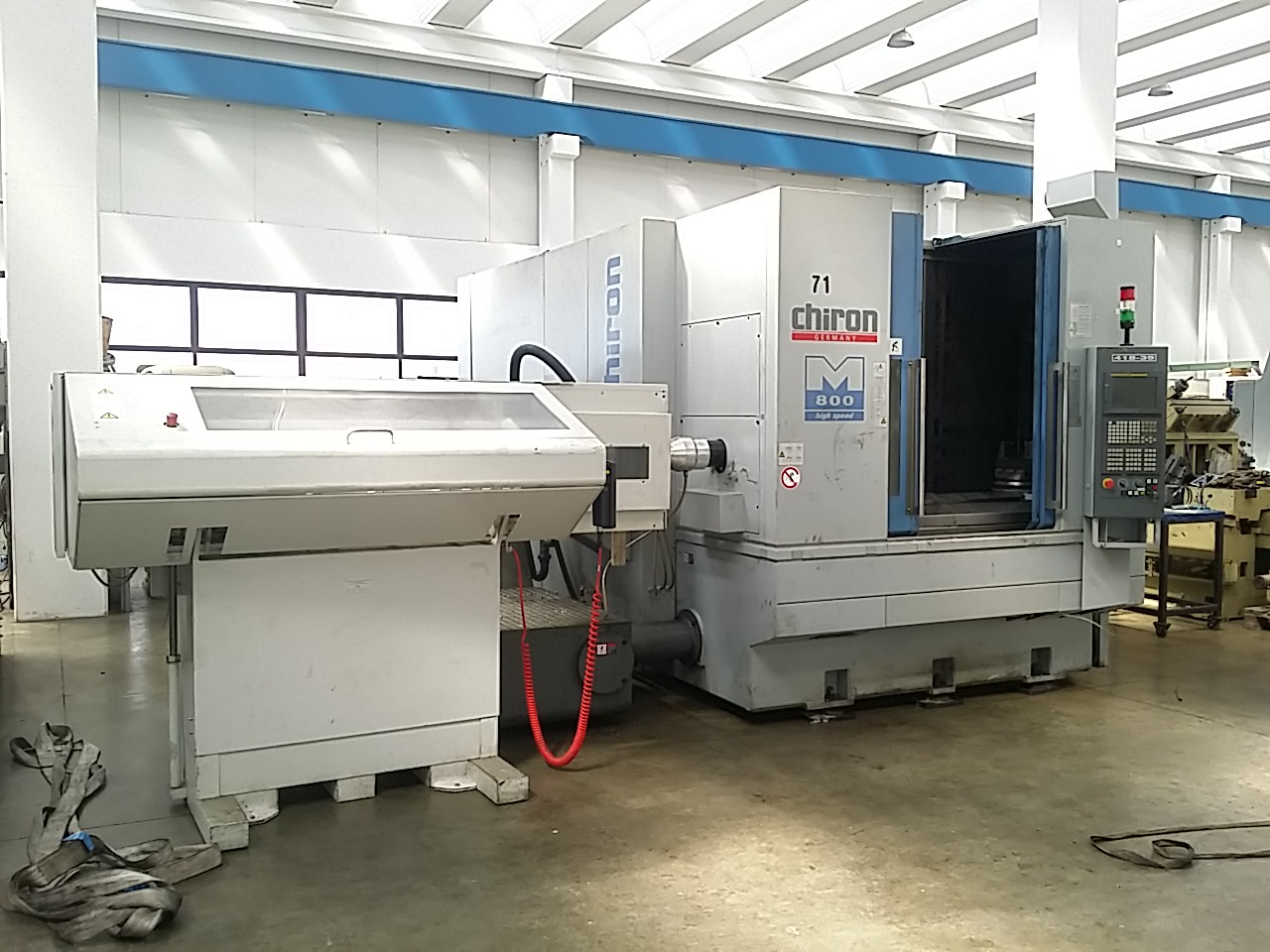

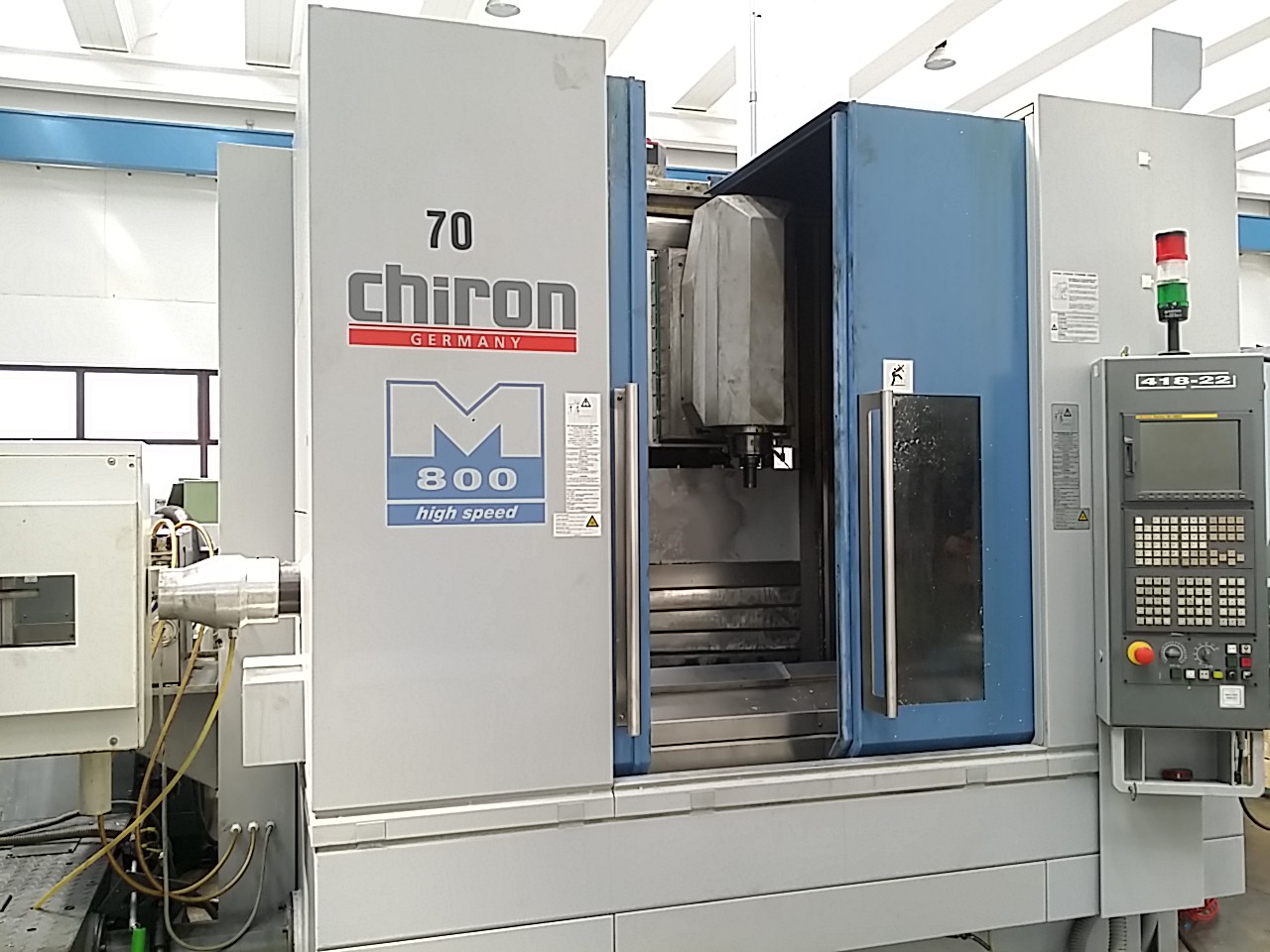

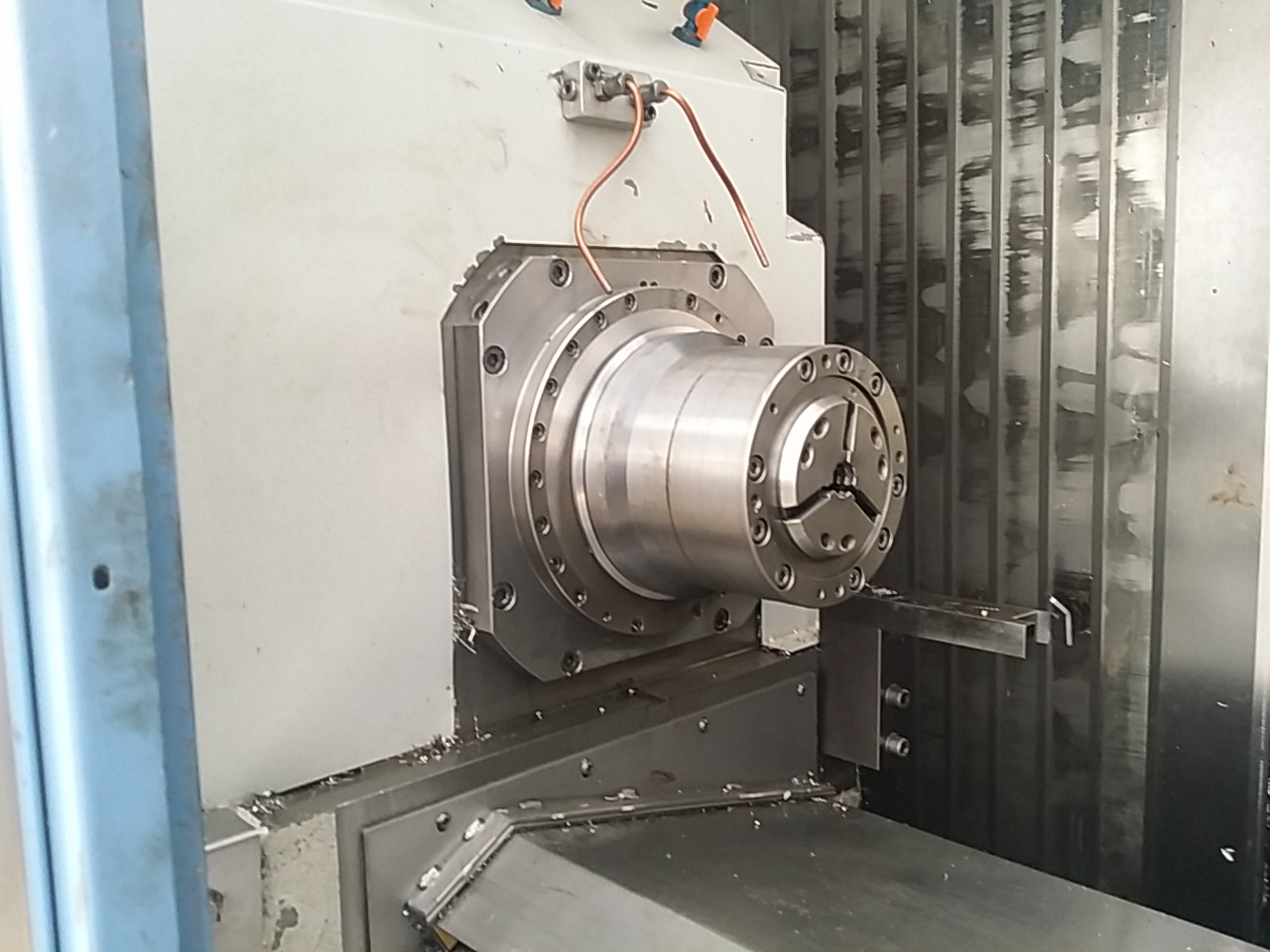

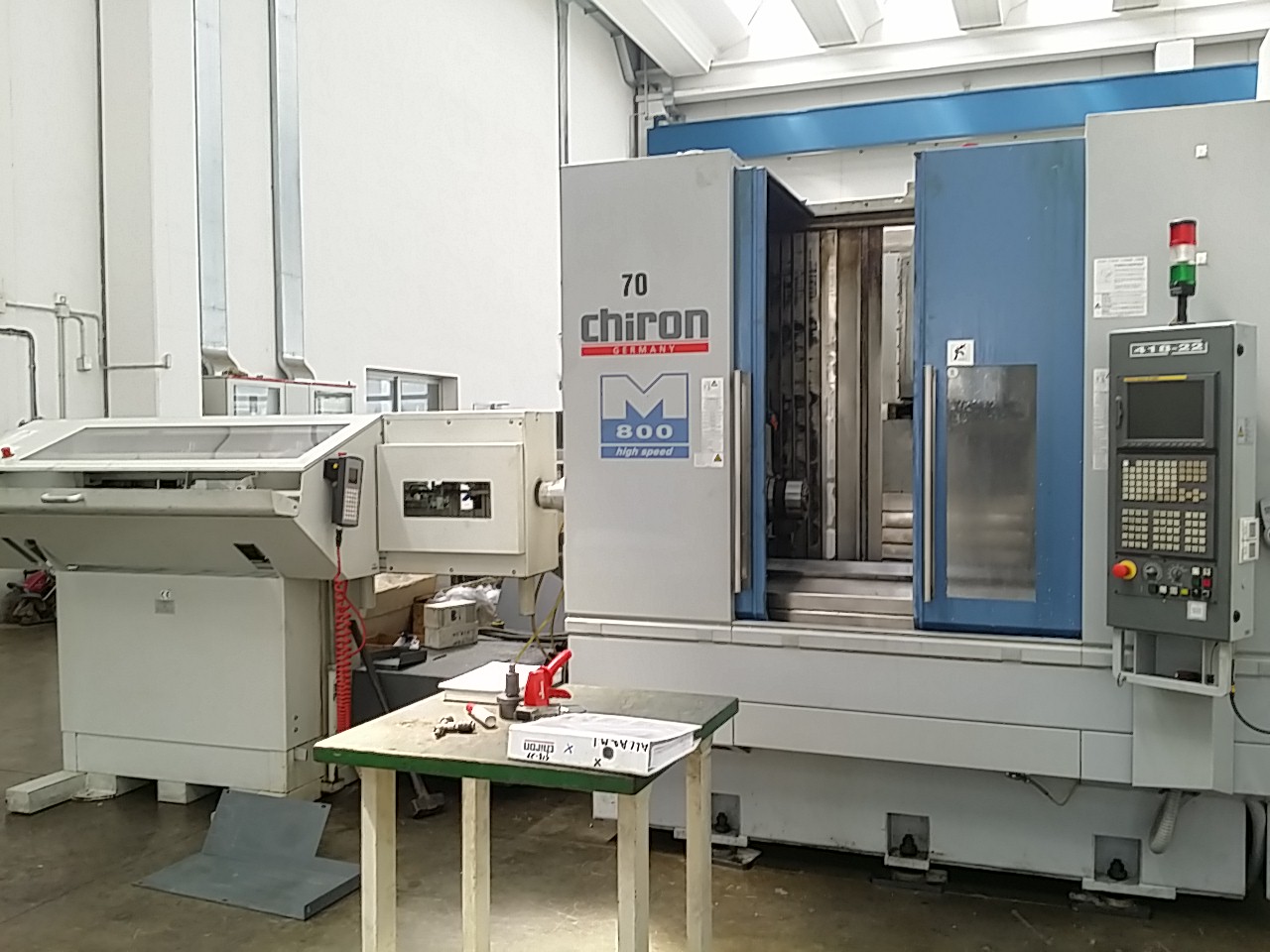

MAKE CHIRON MODEL MILL 800 5 axis 5 axis machininng center (milling/turning from bar) Under power in our warehouse in Gussago BS Italy Mimu Machine tools CNC Fanuc 18iMBS (5 simoultaneous axis 1*) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2**) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3***) Table 1400x500 Max table load 1200 kgs 90fjsieew Coolant through spindle 70 bar (see note 4****) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min/max 5/65 mm L= 600-1200 mm Highspeed (2**) 60m/min. Spindle ...
