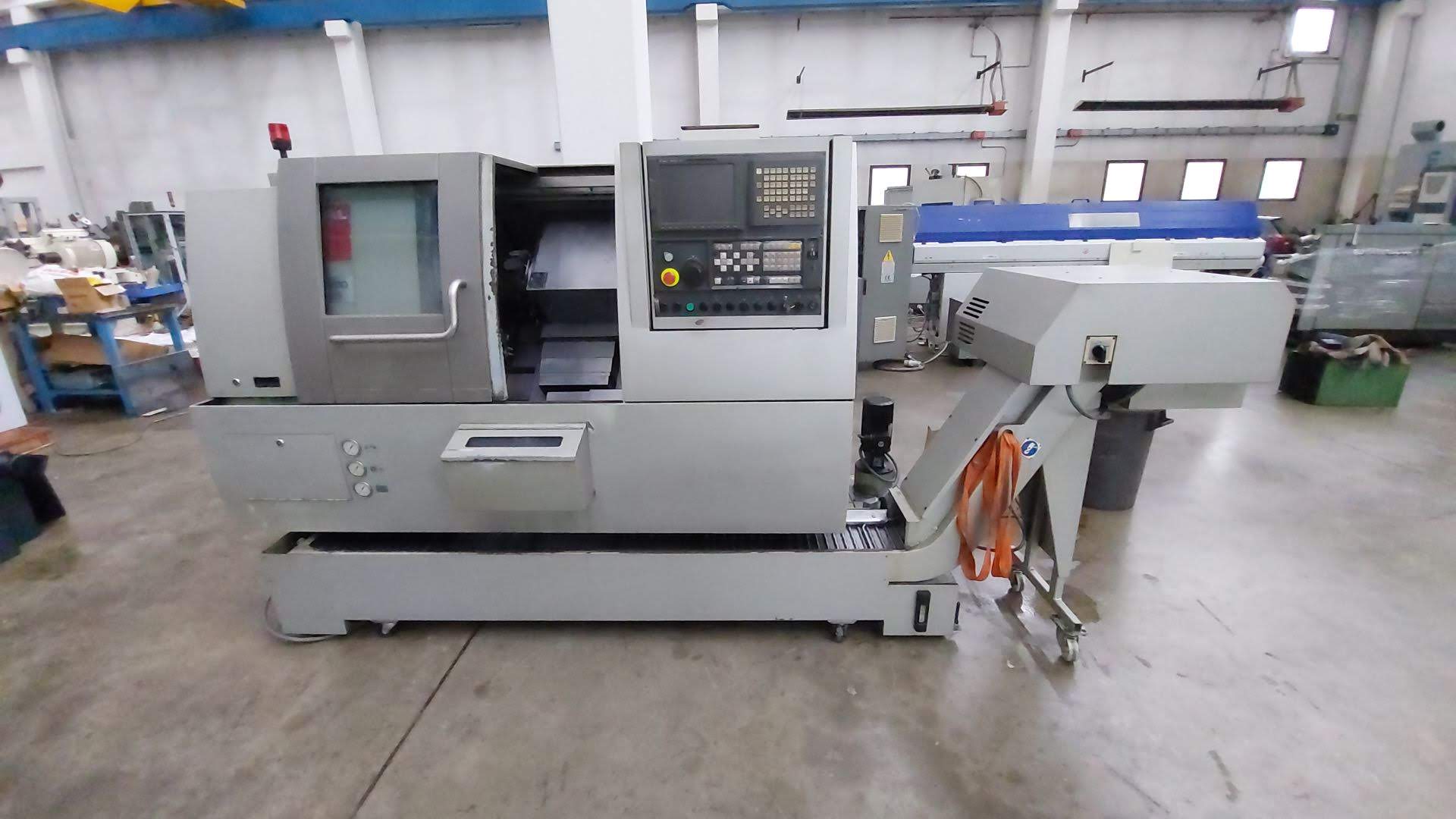

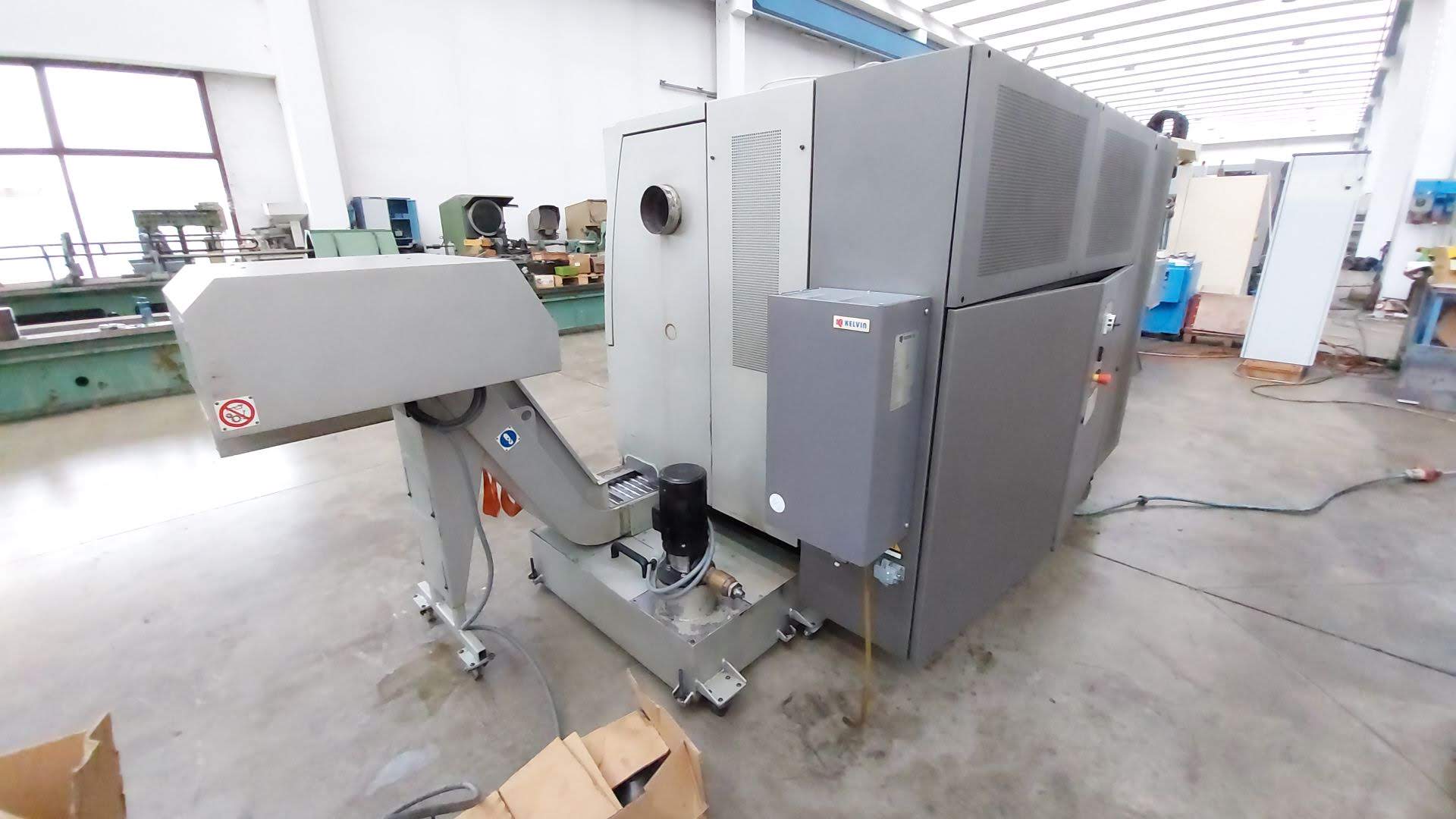

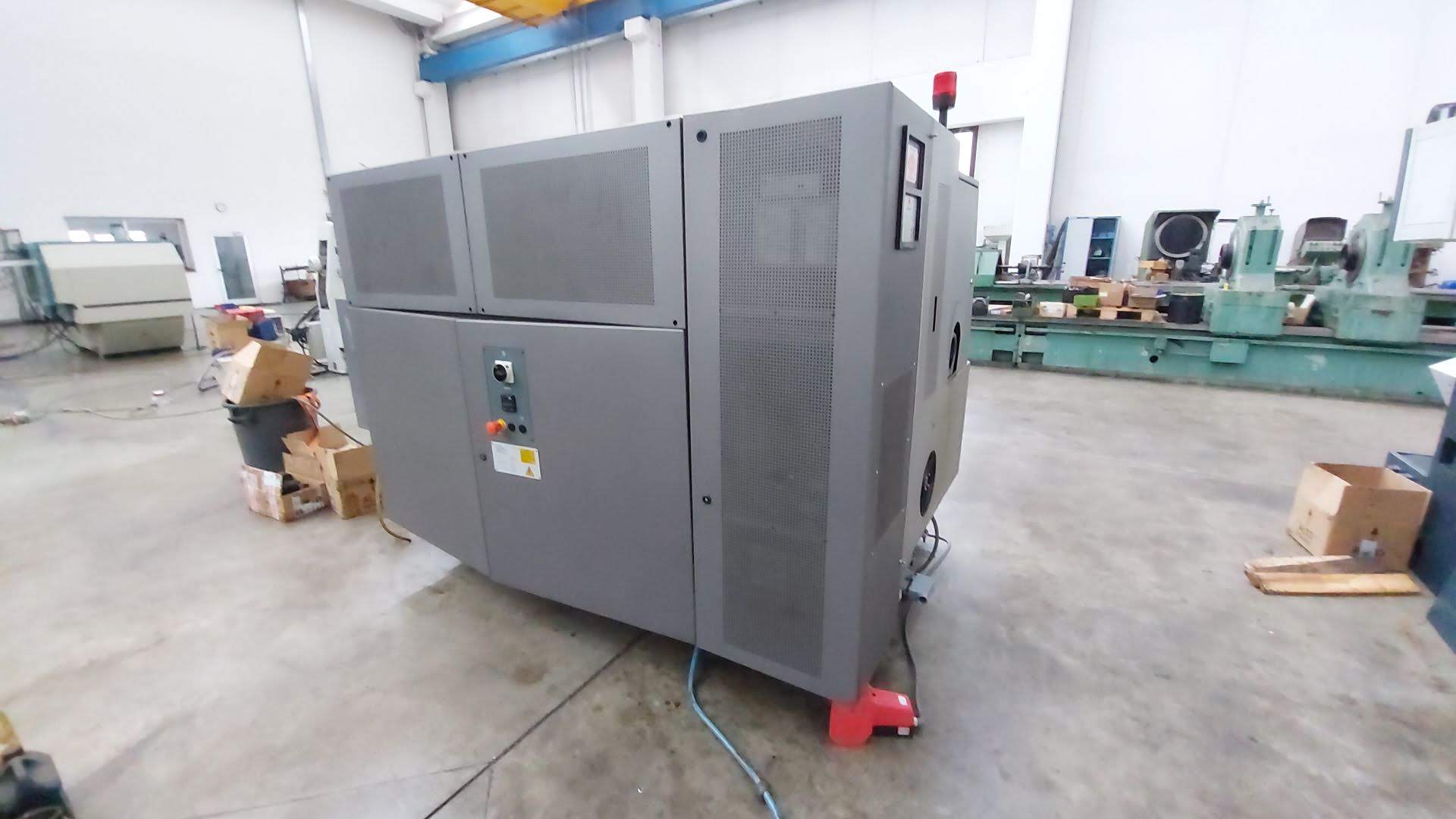

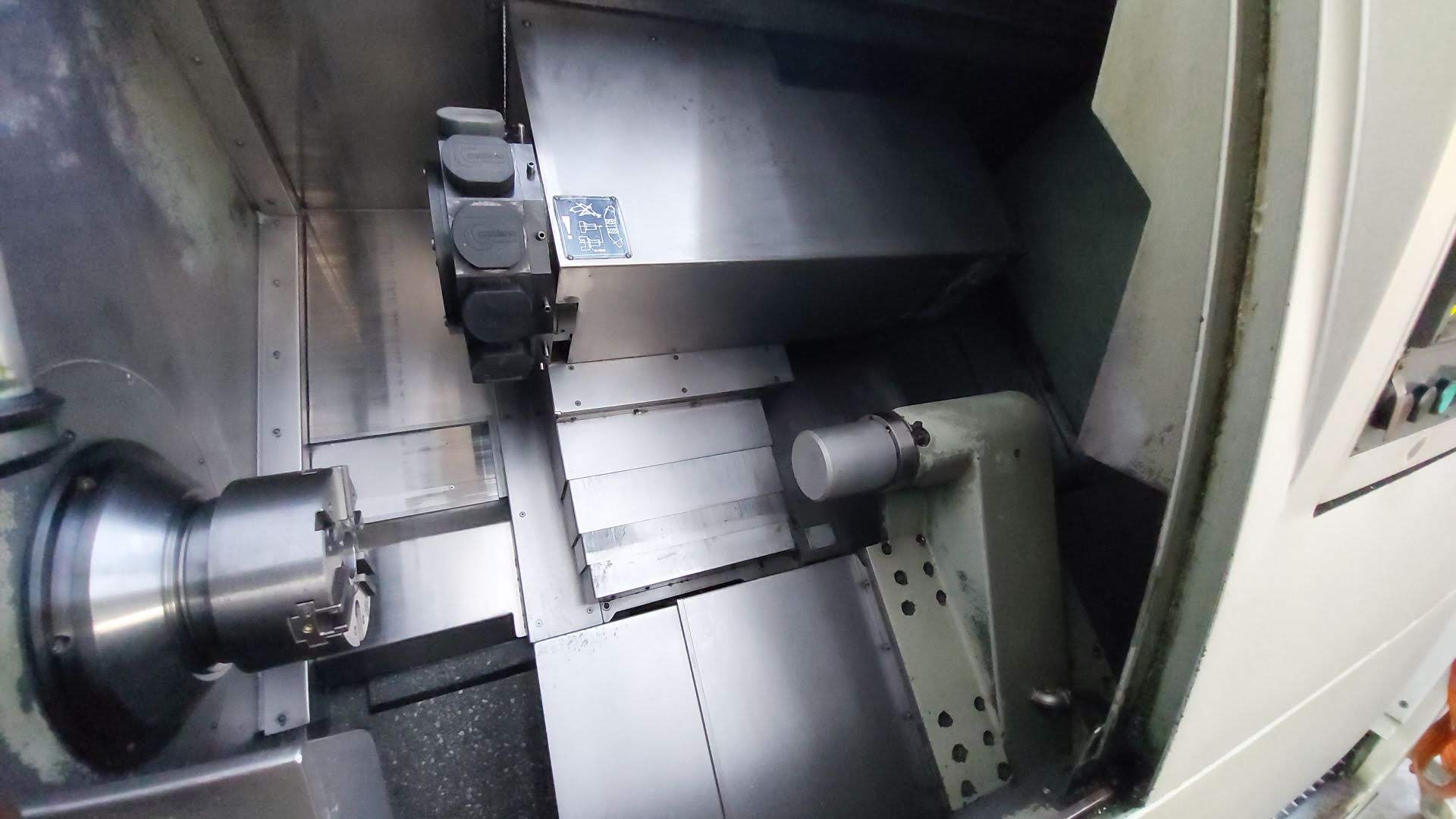

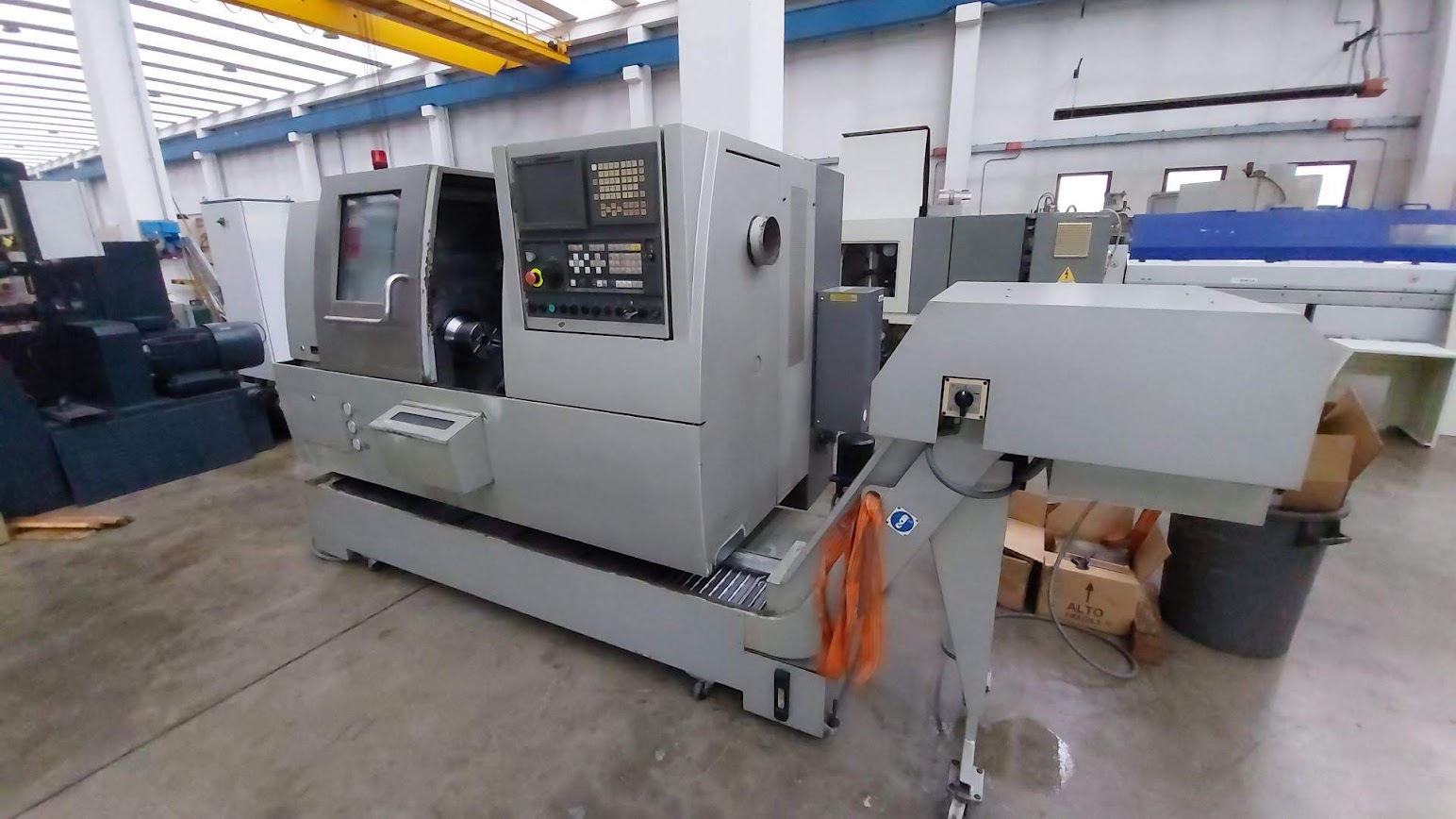

Graziano GT300 CNC

CNC lathe Graziano GT 300 Gital Gildemeister CNC Fanuc 21i - T SAA 5 Main spindle power 15 kW Chuck diameter 165 mm Bar passage 52 mm Turning diameter 230 mm Turning length 550 mm RPM 5000 Number Tool holder turrets1 Number of tool places 12 Number live tools 12 First turret tool connection type VDI 30 X axis stroke 160 mm Z axis stroke 550 mm Linear axes rapid feed X Y Z30 m/min Tailstock in cycle chip conveyor Hand take-piece The machine is in our warehouse in Gussago BS, under power Mimu machine tools
